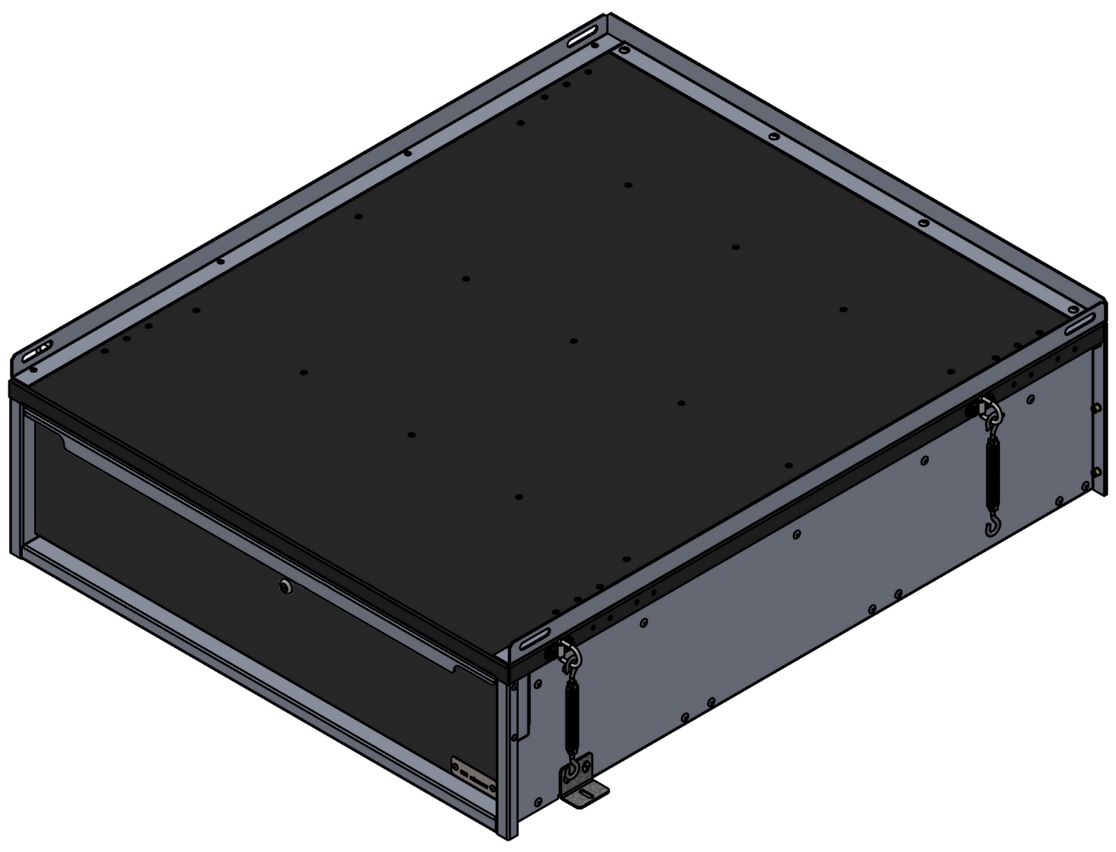

MAX Storage Drawer

Maximum space

The MAX Storage Drawer converts any pickup bed into a field service truck providing easy access to hundreds of pounds of tools and supplies. Manufactured with high grade North American aluminum construction and stainless steel fasteners. The MAX Storage Drawer extends on heavy duty ball bearing drawer slides with the drawer rated at 500 lbs. total capacity.

Standard Features

  • All-aluminum construction, which is 40% lighter than steel
  • 500 lb. ball bearing drawer slides
  • Industrial stainless steel key lock
  • Equipment and parts storage – up to 72” depth
  • Top rail around the box for additional cargo securing on top of unit
  • Powder coating: textured black


  • Anti-skid coating on the top
  • Adjustable dividers
  • Rubber matting


  • OP-TDU-12-40-48-D | 12″H x 40″W x 48″D
  • OP-TDU-12-48-60-D | 12″H x 48″W x 60″D
  • OP-TDU-16-48-48-D | 16″H x 48″W x 48″D
  • OP-TDU-16-48-60-D | 16″H x 48″W x 60″D
  • OP-TDU-12-48-72-D | 12″H x 48″W x 72″D

Fits in:

  • Ford | F150-F550 | 5″5″, 6’5″ and 8′ box
  • Dodge | 1500-3500 | 5’7″, 6’4″ and 8′ box
  • Chevy | Silverado/GMC Sierra | Standard & long box

Limited Lifetime Warranty

Install Gallery
