NEW AFFORDABLE HEAVY-DUTY TRUCK BOX UNIT

With the Truck Box Unit, you can keep your equipment organized and protected no matter the elements – all at an affordable cost! With a drawer capacity of 450lbs and a top capacity of 750 lbs this single drawer solution is guaranteed to store all of your equipment and gear. Choose from our four standard sizes.

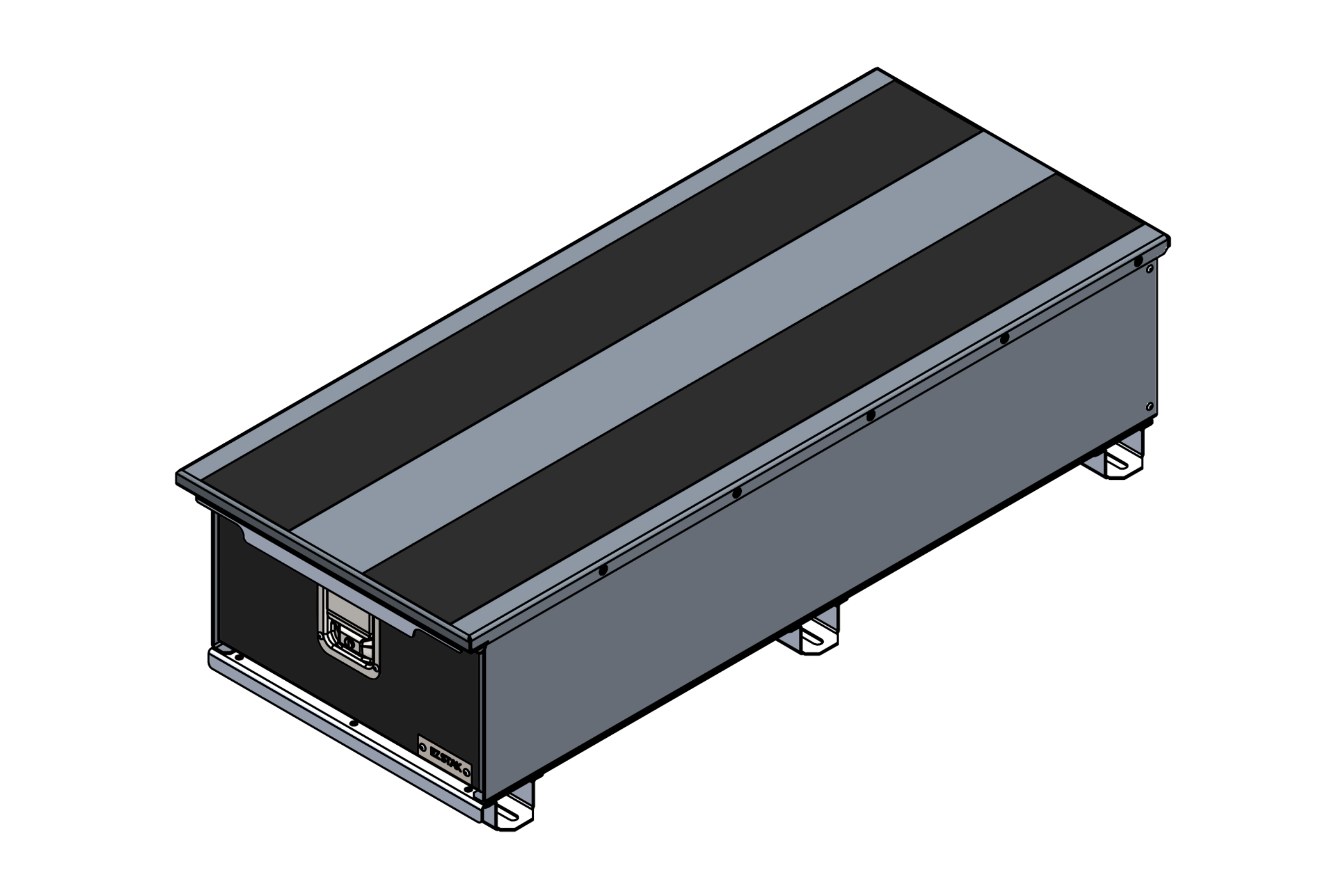

20″W TBU

Truck Box Unit

  • Aluminum construction, weighing only 92lbs
  • 750lb capacity on top of drawer
  • 450lb drawer capacity
  • Lock-in/lock-out slides
  • Standard ‘L’ bracket for mounting
  • Optional turnbuckle mounting available
  • Mounting L-Brackets included
  • Anti-skid grip tape on drawer top

Options

  • Side-to-side dividers (1293049)

Concept

Measured: Height x Width x Depth

  • TBU-13-20-48-001 | 13″ x 20″ x 48″

Click to View Concept

Click Brochure to Download

Limited Lifetime Warranty
OPS PS Warranty 04.06.2020

30″W TBU

Standard Features

  • Aluminum construction, weighing only 160lbs
  • 750lb capacity on top of drawer
  • 450lb drawer capacity
  • Lock-in/lock-out slides
  • Standard ‘L’ bracket for mounting
  • Optional turnbuckle mounting available
  • Mounting L-Brackets included
  • Anti-skid grip tape on drawer top

Options

  • Front-to-back dividers (1292855)
  • Side-to-side dividers (1301907)
  • Egg crate dividers (1340123)

Concept

Measured: Height x Width x Depth

  • TBU-13-30-48-001 | 13″ x 30″ x 48″

Click to View Concept

Click Brochure to Download

Limited Lifetime Warranty
OPS PS Warranty 04.06.2020

40″W TBU

Standard Features

  • Aluminum construction, weighing only 187lbs
  • 750lb capacity on top of drawer
  • 450lb drawer capacity
  • Lock-in/lock-out slides
  • Standard ‘L’ bracket for mounting
  • Optional turnbuckle mounting available
  • Mounting L-Brackets included
  • Anti-skid grip tape on drawer top

Options

  • Front-to-back dividers (1302228)
  • Side-to-side dividers (1302238)
  • Egg crate dividers (1335099)

Concept

Measured: Height x Width x Depth

  • TBU-13-40-48-001 | 13″ x 40″ x 48″

Click to View Concept

Click Brochure to Download

Limited Lifetime Warranty
OPS PS Warranty 04.06.2020

48″W TBU

Standard Features

  • Aluminum construction, weighing only 206lbs
  • 750lb capacity on top of drawer
  • 450lb drawer capacity
  • Lock-in/lock-out slides
  • Standard ‘L’ bracket for mounting
  • Optional turnbuckle mounting available
  • Mounting L-Brackets included
  • Anti-skid grip tape on drawer top

Options

  • Front-to-back dividers (1302293)
  • Side-to-side dividers (1302303)
  • Egg crate dividers (1340112)

Concept

Measured: Height x Width x Depth

  • TBU-13-48-48-001 | 13″ x 48″ x 48″

Click to View Concept

Click Brochure to Download

Limited Lifetime Warranty
OPS PS Warranty 04.06.2020
